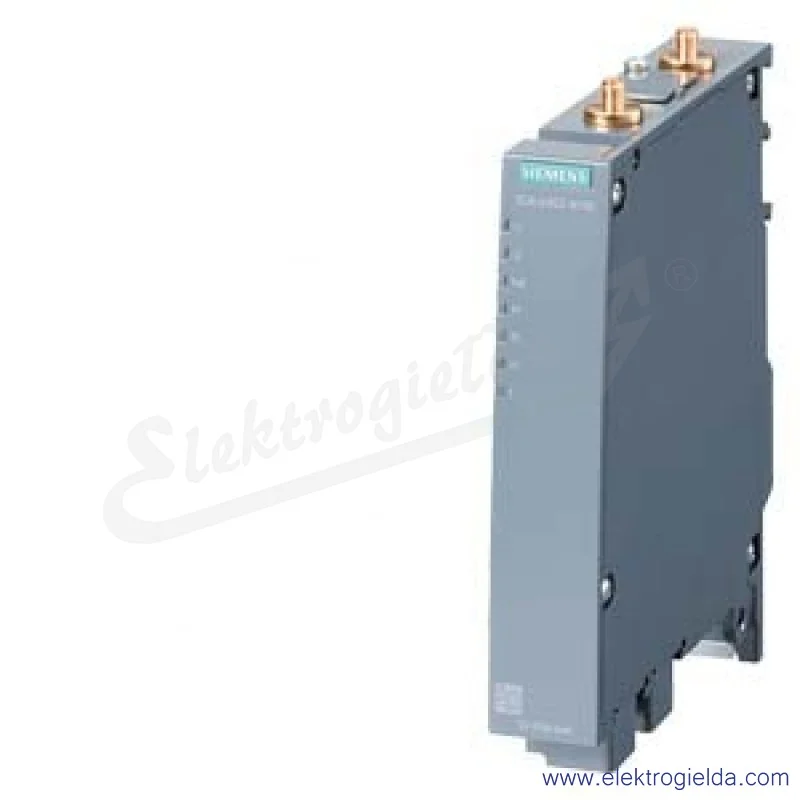

6GK5734-1FX00-0AA0 IWLAN client/WLAN bridge, IP30, IEEE 802.11n, 2xRJ45, 2xR-SMA, PLUG slot

IWLAN client, SCALANCE W734-1, RJ45, 1 radio, 2 R-SMA antenna port, iFeatures Support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x RJ45 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, joint block, IP30, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN-W1-RJ-E2, scope of delivery: Manuals on CD-ROM, German/English, 1x joint block; for operation outside of USA/Israel . SCALANCE W734-1 RJ45 1x wireless, 2x R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x RJ45 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, IP30, plug slot, for operation outside the US/Israel. For managing wireless connection of up to eight connected devices with Industrial Ethernet connection. 1 unit.The devices are suitable for installation in the control cabinet as well as for indoor installation without control cabinets.Predictable data traffic (deterministic response) and defined response times on the radio link through iFeatures as well as reliable radio connection through use of the MIMO technology and monitoring of the radio link. PROFINET communication for real-time and redundancy requirements as well as option for transmission of safety-relevant data (safety) via PROFIsafe or CIP and other protocols. Particularly future-proof through conformity with WLAN standard IEEE 802.11 accepted worldwide as well as investment protection through flexible feature extensions with KEY-PLUG. Furthermore, cost savings through use of a single wireless network. Additional characteristics are easy management via Web server and SNMP, fast device replacement in case of error through optional removable data storage medium C-PLUG as well as the possibility to realize data-intensive applications, such as video streaming. Compact and space-saving in the control cabinet because it can be mounted directly next to the SIMATIC S7-1500 or ET 200MP.Thecomprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
