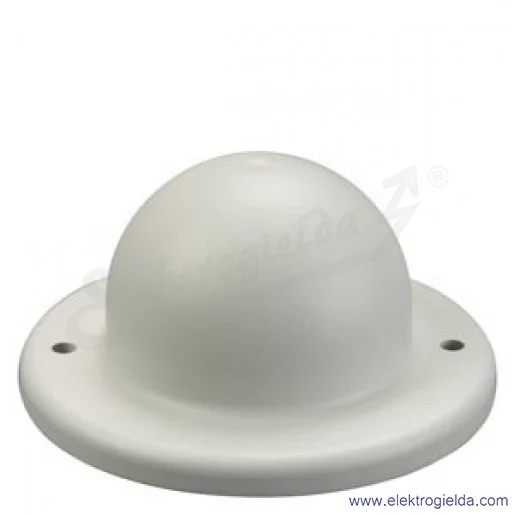

Opis produktuANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. SCALANCEAntennaAntenna ANT795-6MNUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with transmission rates of up to 450 Mbps to optimize sending and receiving conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Application examples: coverage of an area which has at its center a mast for mounting the antennas, installation of the antenna on the roof of automated guided vehicle systems for reliable data exchange with the vehicles, comprehensive coverage of a production cell or a robot station.–Concentration of the radio field around the antenna improves the quality of the connection. –Good transmission characteristics also directly above/underneath the antenna. –Flexible mounting options: On a control cabinet, on a roof, or even underneath a roof. –Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
