Producent:
Numer katalogowy producenta:
6GK57936DG000AA0
Jednostka miary:
szt.
Minimalna ilość sprzedaży:
1
- Producent:

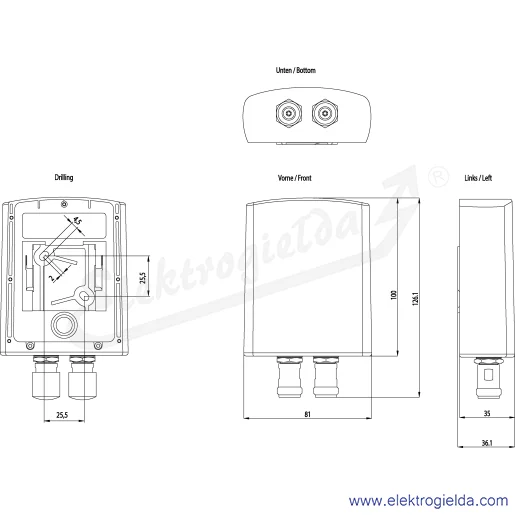

- Głębokość
- 35 mm
- Szerokość
- 80 mm
- Temperatura otoczenia w warunkach pracy
- -40 … 80 °C
- Wewnętrzna
- tak
- Wysokość
- 101 mm
- Z kablem podłączeniowym
- nie
- Zewnętrzna
- tak
Opis produktu

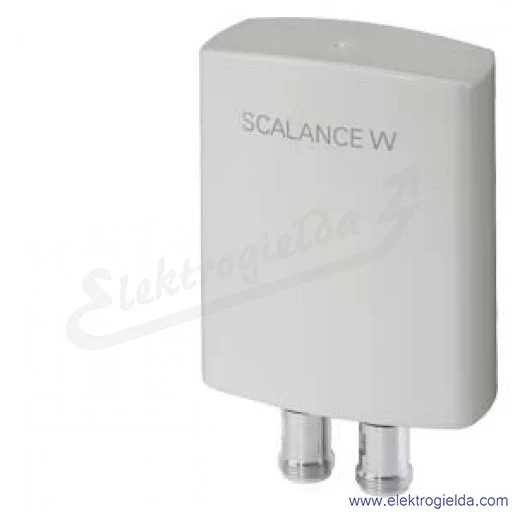

ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . SCALANCEAntennaAntenna ANT793-6DGThis means that conveyor lines or passageways can be selectively wireless-controlled. Ideally suitable for wall or mast mounting. Suitable, for example, for providing wireless coverage for an area in front of a wall. The antenna is connected to access points or clients via an IWLAN antenna connection cable.Selective coverage of radio areas using this wide-angle antenna reduces interference with adjacent radio fields. Enhanced data throughput and increased reliability of thewireless connection through selective use of multiple path propagation. Two data streams can be transmitted simultaneously. Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
