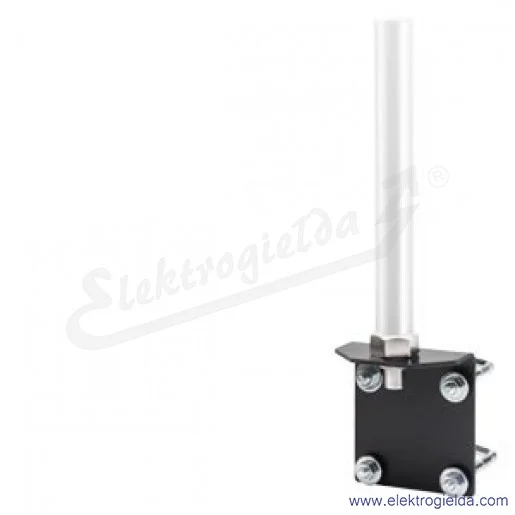

6GK5795-6MP00-0AA0 Antenna ANT795-6MP, IWLAN, omnidirectional, 2.4/5 GHz, 5/7 dBi, N-female, IP65/67

ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. SCALANCEAntennaAntenna ANT795-6MPUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with transmission rates of up to 450 Mbps to optimize sending and receiving conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Application examples: coverage of an area which has at its center a mast for mounting the antenna, also in harsh ambient conditions such as outdoors, salt-laden air, comprehensive coverage of a production cell or a robot station.Concentration of the radio field around the antenna improves the quality of the connection.– Investment security through compliance with the globally recognized IEEE 802.11 standard. –Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
