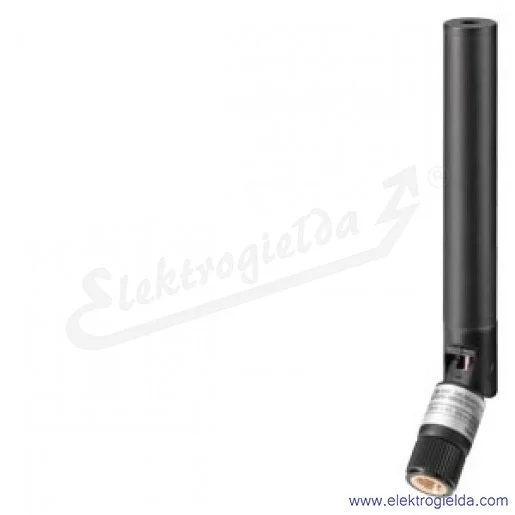

6GK5795-4MB00-0AA0 Antenna ANT795-4MB, IWLAN, omnidirectional, 2.4/5 GHz, 2/3 dBi, RSMA, IP65

ANT795-4MB IWLAN antenna with omnidirectional Characteristic, Radially rotatable, with additional joint, incl. RSMA connector: 2/3 dBi, IP65 (-20-+60 °C), 2.4/5 GHz; Wi-Fi compliance and national approvals to be observed; direct mounting on SCALANCE W with RSMA connection system; scope of delivery: 1xANT795-4MB , compact instructions as hard copy German/English. SCALANCEAntennaAntenna ANT795-4MBUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbps to optimize sending and receiving conditions. Direct mounting on the R-SMA socket of the access point or client. Application examples: Installation of devices with an antenna on automated guided vehicle systems for reliable data exchange with the vehicles, comprehensive coverage of a production cell or a robot station.Concentration of the radio field around the antenna improves the quality of the connection.– Investment security through compliance with the globally recognized IEEE 802.11 standard. –Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
