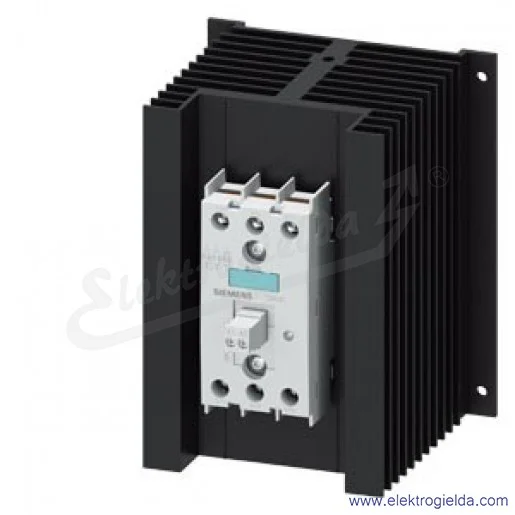

Zdjęcie produktu
  • Zdjęcie produktu

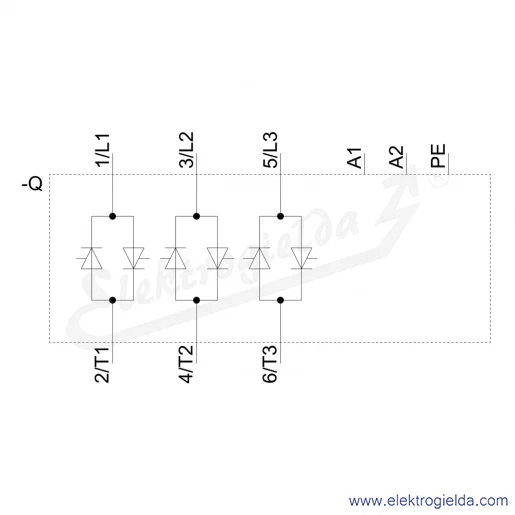

  • Schemat obwodu

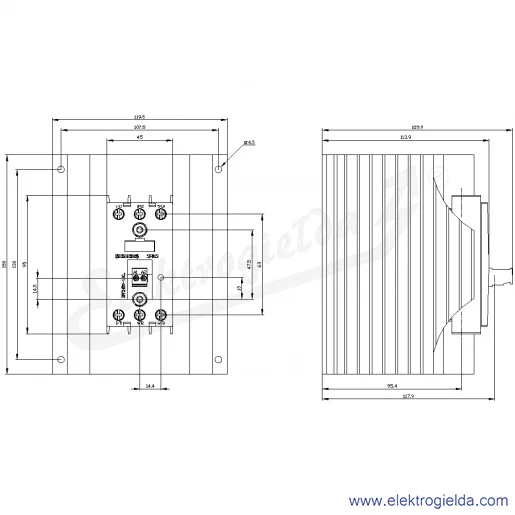

  • Rysunek wymiarowy

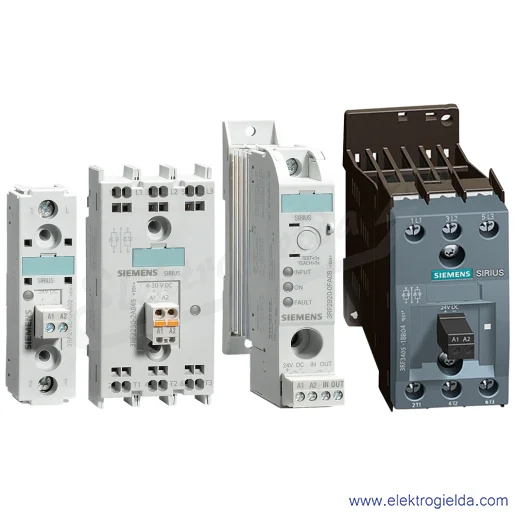

  • MD65
  • Wizualizacja
Drukuj

3RF2450-1AC55 Solid-state contactor 3RF2, 3-ph. AC51 50 A 48-600 V/230 V AC 3-phase controlled

Numer katalogowy: 3RF24501AC55
Producent: Siemens
Kod EAN: 4011209647251
Cena dla Ciebie

933,34 zł brutto/szt.
Cena netto: 758,82 zł

(933,34 zł szt.)

Ilość
Minimalna ilość sprzedaży to 1 sztuka
Produkt dostępny na zamówienie. Zadzwoń 42 652 27 00 lub napisz  sprzedaz@elektrogielda.comnapisz
Stan magazynowy:0 szt.
Czas wysyłki: 8 dni roboczych
Minimalna ilość sprzedaży: 1 szt.
Numer katalogowy:Nr.kat.:3RF24501AC55
Stan magazynowy: 0 szt.
Czas wysyłki: 7 dni roboczych
Numer katalogowy: 3RF24501AC55
Producent: Siemens
Kod EAN: 4011209647251
Minimalna ilość jednostek miary do kupienia: 1 szt.
Cena933,34 zł/szt.
Producent:
Numer katalogowy producenta: 3RF24501AC55
Jednostka miary: szt.
Minimalna ilość sprzedaży: 1
Dane techniczne
Producent:
Opis produktu
Solid-state contactor 3-phase 3RF2 AC 51 / 50 A / 40 °C 48-600 V / 230 V AC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state contactor SIRIUS 3RF24 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant. The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the DIN rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections. In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories. Simple, efficient and always up to date - SIRIUS modular system.
