- Liczba biegunów
- 3
- Maksymalne znamionowe napięcie pracy Ue AC
- 690 V
- Rozmiar wkładki bezpiecznikowej
- NH2, NH3
- Rozstaw szyn 100 mm
- nie
- Rozstaw szyn 185 mm
- tak
- Rozstaw szyn 40 mm
- nie
- Rozstaw szyn 50 mm
- nie
- Rozstaw szyn 60 mm
- nie
- Rozłączenie obustronne
- nie
- Znamionowy prąd ciągły Iu
- 630 A
Opis produktu

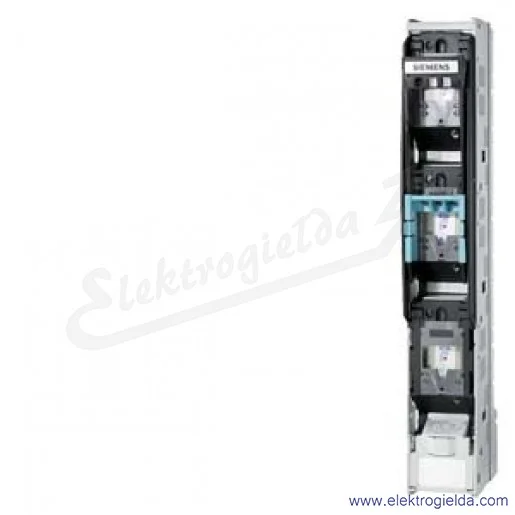

In-line fuse switch disconnector 3-pole selectable, Sz. 3 I=630 A, U=690 V Screw terminal M12, Current transformer installation possible The 3NJ4 fuse switch disconnectors for low-voltage distribution. 3NJ4 1-pole and 3-pole in-line fuse switch disconnectors can be installed in low-voltage distribution boards, substations and cable distribution cubicles. Key features of the Siemens 3NJ4 fuse switch disconnectors: 1. Compliance with IEC/EN 60439-1 and IEC/EN 60947-3. 2. Voltage levels up to 690 V AC. 3. Parking position for maintenance. 4. Vertical and horizontal mounting position. 5. Weathering resistance. 6. Degree of protection IP30 with closed fuse carriers, IP10 with open fuse carriers.
