Producent:
Numer katalogowy producenta:
6GK57954MD000AA3
Jednostka miary:
szt.
Minimalna ilość sprzedaży:
1
- Producent:
- Głębokość
- 13 mm
- Stopień ochrony (IP)
- IP65
- Szerokość
- 35 mm
- Temperatura otoczenia w warunkach pracy
- -20 … 65 °C
- Wewnętrzna
- tak
- Wysokość
- 160 mm
- Z kablem podłączeniowym
- nie
- Zewnętrzna
- nie
Opis produktu

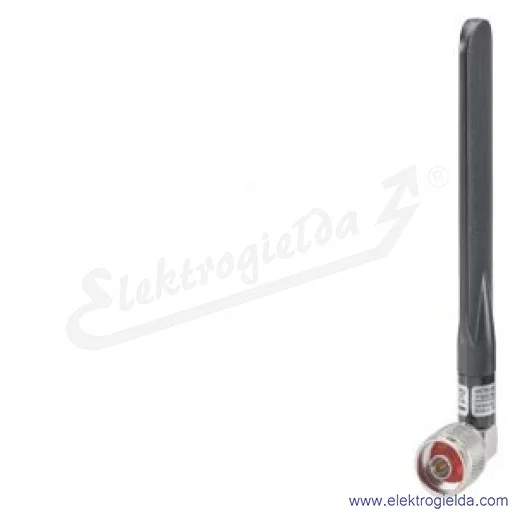

ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N-Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. SCALANCEAntennaAntenna ANT795-4MDUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbps to optimize sending and receiving conditions. Direct mounting on the N-Connect socket of the access point or client. Application examples: Installation of devices with an antenna on automated guided vehicle systems for reliable data exchange with the vehicles, coverage of an area, comprehensive coverage of a production cell or a robot station.Concentration of the radio field around the antenna improves the quality of the connection.– Investment security through compliance with the globally recognized IEEE 802.11 standard. –Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
