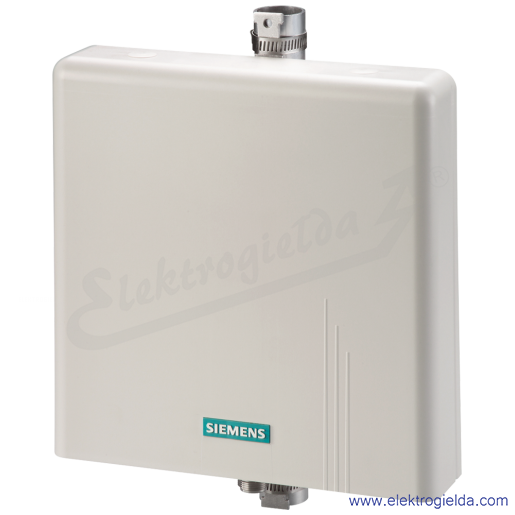

6GK5792-8DN00-0AA6 Antenna ANT 792-8DN, IWLAN, directivity, 2.4 GHz, 14 dBi, N-female, IP23
Producent:
Numer katalogowy producenta:
6GK57928DN000AA6
Jednostka miary:
szt.
Minimalna ilość sprzedaży:
1
- Producent:
- Do użytku wewnątrz pomieszczeń
- TAK
- Dookólna (wielokierunkowa)
- NIE
- Głębokość [mm]
- 43 mm
- MIMO (Multiple-Input Multiple-Output)
- NIE
- Maksymalny zakres transmisji [m]
- 1000 m
- Nadaje się do zastosowań zewnętrznych
- TAK
- Stopień ochrony (IP)
- IP23
- Szerokość [mm]
- 200 mm
- Temperatura otoczenia w warunkach pracy [°C]
- -40 do 80
- Wysokość [mm]
- 200 mm
- Z kablem podłączeniowym
- NIE
Opis produktu
ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . SCALANCEAntennaAntenna ANT792-8DNIdeally suitable for wall or mast mounting. Selective coverage of warehouse/high-bay warehouse aisles. Communication between buildings over long distances. The antenna is connected to access points and clients via an IWLAN antenna connection cable.High passive amplifications and long ranges (bridging of long distances) thanks to the concentration of the radio field and the small opening angle. The radio field is concentrated into a tight cone. Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
