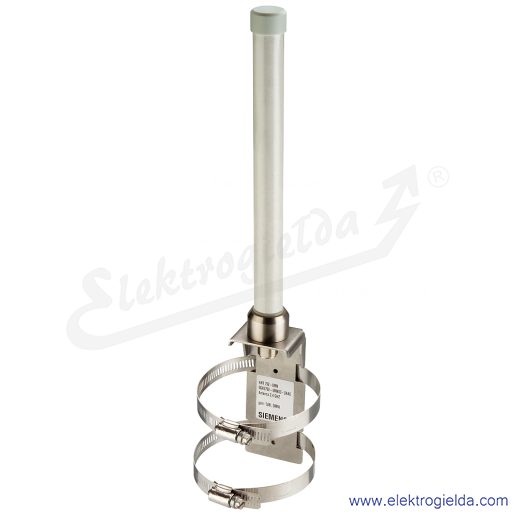

6GK5792-6MN00-0AA6 Antenna ANT 792-6MN, IWLAN, omnidirectional, 2.4 GHz, 6 dBi, N-female, IP67
Producent:
Numer katalogowy producenta:
6GK57926MN000AA6
Jednostka miary:
szt.
Minimalna ilość sprzedaży:
1
- Producent:
- Do użytku wewnątrz pomieszczeń
- TAK
- Dookólna (wielokierunkowa)
- NIE
- Głębokość [mm]
- 40 mm
- MIMO (Multiple-Input Multiple-Output)
- NIE
- Maksymalny zakres transmisji [m]
- 200 m
- Nadaje się do zastosowań zewnętrznych
- TAK
- Stopień ochrony (IP)
- IP67
- Szerokość [mm]
- 50 mm
- Temperatura otoczenia w warunkach pracy [°C]
- -40 do 80
- Wysokość [mm]
- 370 mm
- Z kablem podłączeniowym
- NIE
Opis produktu
ANT792-6MN IWLAN antenna with omnidirectional characteristic incl. N-female plug: 6 dBi IP67 (-40-+70 °C); 2.4 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-6MN, 1x terminating resistor TI795-1R . SCALANCEAntennaAntenna ANT792-6MNUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with transmission rates of up to 450 Mbps to optimize sending and receiving conditions. The antenna is connected to access points or clients via an IWLAN antenna connection cable. Application examples: coverage of an area which has at its center a mast for mounting the antennas, installation of the antenna on the roof of automated guided vehicle systems for reliable data exchange with the vehicles, comprehensive coverage of a production cell or a robot station.Concentration of the radio field around the antenna improves the quality of the connection.– Investment security through compliance with the globally recognized IEEE 802.11 standard. –Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
