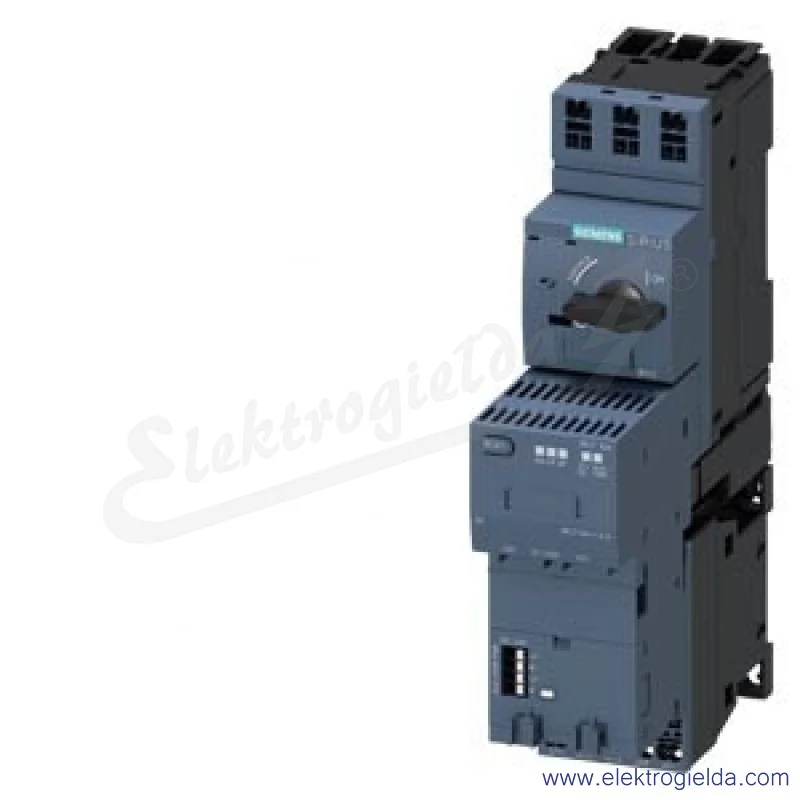

Zdjęcie produktu
  • Zdjęcie produktu

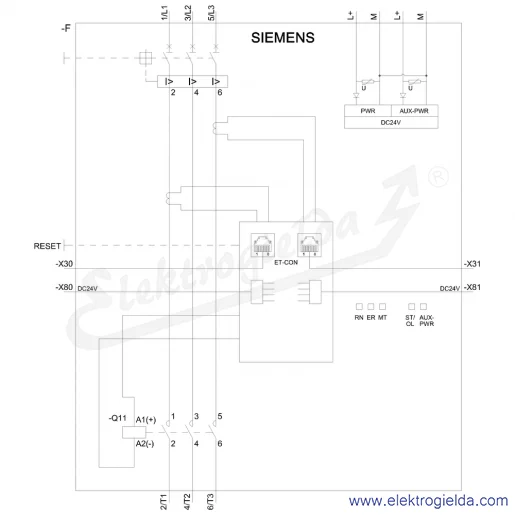

  • Schemat obwodu

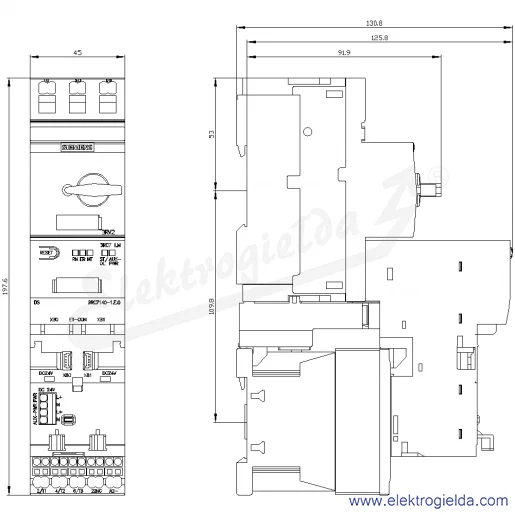

  • Rysunek wymiarowy
Drukuj

3RA8411-1KE00 Intelligent load feeder direct starter Standard, 1.2-12 A, S00

Numer katalogowy: 3RA84111KE00
Producent: Siemens
Kod EAN: 4047621109879
Cena dla Ciebie

1 333,68 zł brutto/szt.
Cena netto: 1084,29 zł

(1 333,68 zł szt.)

Ilość
Minimalna ilość sprzedaży to 1 sztuka
Produkt dostępny na zamówienie. Zadzwoń 42 652 27 00 lub napisz  sprzedaz@elektrogielda.comnapisz
Stan magazynowy:0 szt.
Czas wysyłki: Produkt dostępny na zamówienie.Zadzwoń 42 652 27 00
Minimalna ilość sprzedaży: 1 szt.
Numer katalogowy:Nr.kat.:3RA84111KE00
Stan magazynowy: 0 szt.
Czas wysyłki: Na zamówienie
Numer katalogowy: 3RA84111KE00
Producent: Siemens
Kod EAN: 4047621109879
Minimalna ilość jednostek miary do kupienia: 1 szt.
Cena1 333,68 zł/szt.
Producent:
Numer katalogowy producenta: 3RA84111KE00
Jednostka miary: szt.
Minimalna ilość sprzedaży: 1
Dane techniczne
Producent:
Głębokość
1131 mm
Liczba sygnalizatorów świetlnych
10
Maksymalna temperatura otoczenia
140 °C
Możliwość montażu na szynie
1tak
Możliwość zewnętrznego kasowania
1tak
Obsługa innych protokołów
1tak
Rodzaj napięcia sterowania
1DC
Rodzaj podłączenia styków głównych
1Zacisk sprężynowy
Stopień ochrony (IP)
1IP20
Szerokość
145 mm
Wbudowane zabezpieczenie przeciążeniowe silnika
1Tak
Wysokość
1198 mm
Z bezpiecznikiem
1nie
Z transformatorem
1nie
Z wyzwalaczem zwarciowym
1tak
Zabezpieczenie przeciążeniowe z kompensacją temperaturowa
1nie
Zakres nastawy wyzwalacza przeciążeniowego
11.2 … 12 A
Znamionowa moc pracy dla AC-3, 400 V
15.5 kW
Znamionowa moc silnika trójfazowego przy 230V
13 kW
Znamionowa moc silnika trójfazowego przy 400V
15.5 kW
Znamionowe napięcie pracy Ue
1690 V
Znamionowe napięcie sterowania Us dla DC
124 V
Znamionowy prąd pracy Ie
112 A
Znamionowy prąd pracy dla AC-3, 400 V
112 A
Znamionowy warunkowy prąd zwarciowy, koordynacja typ 1, 480 Y/ 277 V
165000 A
Znamionowy warunkowy prąd zwarciowy, koordynacja typ 1, 600 Y/ 347 V
130000 A
Opis produktu
intelligent load feeder direct starter standard 1.2-12 A up to 690 V AC type of coordination 1 frame size S00 for ET 200SP system consisting of 3RC7140-1KE00, 3RV2311-1KC20, 3RT2017-2BB42 Intelligent load feeder SIRIUS 3RA8 as part of automation with SIMATIC ET 200SP for protecting and starting motors. The 3RA8 intelligent load feeder consists of a premounted circuit breaker, a matching contactor and a 3RC7 intelligent link module. The direct acquisition of measured values and status information enables transparency down to the field level. The integrated overload function and the detection of faults, deviations and the need for maintenance facilitate diagnostics and enable preventive maintenance. Thanks to significantly reduced wiring effort, simple installation in the control cabinet and parameterization in TIA Portal, you save time during commissioning and expansions. The 3RA8 intelligent load feeders are available as direct-on-line and reversing starters, each for different current ranges, both as Standard or High Feature versions, including voltage and power measurement. Accessories include an adapter for stand-alone installation, Power Cable and Communication Cable. 3RC7 intelligent link modules - Simply digital. Intelligent on many levels.
