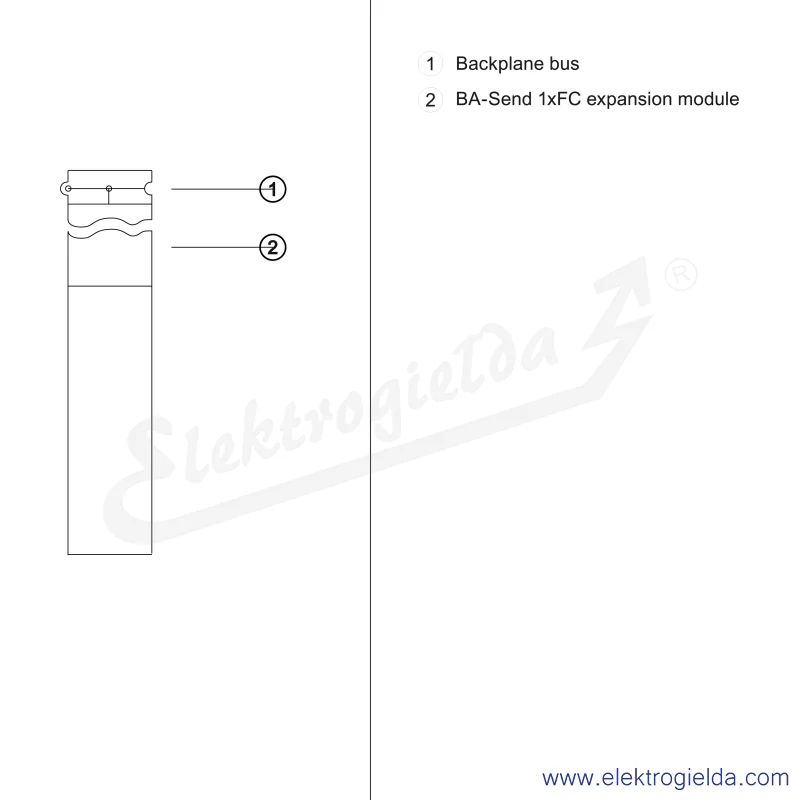

Schemat obwodu
  • Schemat obwodu

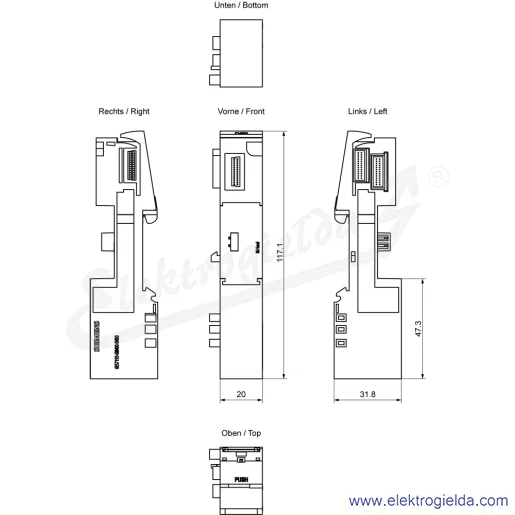

  • Rysunek wymiarowy
Drukuj

6ES7193-6BN00-0NE0 SIMATIC ET 200SP BU-Send For station extension via ET connection

Numer katalogowy: 6ES71936BN000NE0
Producent: Siemens
Kod EAN: 4047623404552
Cena dla Ciebie

219,03 zł brutto/szt.
Cena netto: 178,07 zł

(219,03 zł szt.)

Ilość
Minimalna ilość sprzedaży to 1 sztuka
Stan magazynowy:200 szt.
Czas wysyłki: 24h
Minimalna ilość sprzedaży: 1 szt.
Numer katalogowy:Nr.kat.:6ES71936BN000NE0
Stan magazynowy: 200 szt.
Czas wysyłki: 6 dni roboczych
Numer katalogowy: 6ES71936BN000NE0
Producent: Siemens
Kod EAN: 4047623404552
Minimalna ilość jednostek miary do kupienia: 1 szt.
Cena219,03 zł/szt. Cena podstawowa312,90 zł/szt.
Producent:
Numer katalogowy producenta: 6ES71936BN000NE0
Jednostka miary: szt.
Minimalna ilość sprzedaży: 1
Dane techniczne
Producent:
Akcesoria systemowe
1tak
Do układów bezpieczeństwa
1nie
Głębokość
135 mm
Liczba gniazd/slotów
11
Montaż ścienny / montaż bezpośredni
1nie
Możliwość montażu na szynie
1tak
Możliwy montaż panelowy
1nie
Możliwy montaż stelażowy (rack)
1nie
Szerokość
120 mm
Wyposażenie eksploatacyjne (Ex ia)
1nie
Wyposażenie eksploatacyjne (Ex ib)
1nie
Wysokość
1117 mm
Z innymi modułami wtykowymi
1tak
Z wbudowanym zasilaczem
1nie
Z wtykowymi modułami centralnymi
1nie
Z wtykowymi modułami funkcyjnymi i technologicznymi
1nie
Z wtykowymi modułami komunikacyjnymi
1tak
Z wtykowymi modułami wejść/wyjść analogowych
1nie
Z wtykowymi modułami wejść/wyjść cyfrowych
1nie
Opis produktu
SIMATIC ET 200SP, BaseUnit BU-SEND, for station expansion of ET 200SP via ET connection, WxH: 20 mmx117 mm SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". The scalable, cost-optimized configuration of an ET 200SP station is ensured by the wide range of signal modules. In addition to digital and analog input and output modules, respective fail-safe variants are also available for applications up to SIL 3 / PLe. This also applies to the integrated motor starters, which are suitable for motors up to 5.5 kW. Energy Meters for measuring and analyzing the energy consumption, IO-Link master (V1.1.), and many other communication and technology modules allow the system to be adapted to any automation task.
