Producent:
Numer katalogowy producenta:
6GK57381GY000AA0
Jednostka miary:
szt.
Minimalna ilość sprzedaży:
1
- Producent:
- Adapter do gniazda wyjściowego
- nie
- Do montażu 19 calowego (482,6 mm)
- nie
- Do zabudowy
- nie
- Ethernet
- tak
- Funkcja mostka
- tak
- Funkcja wzmocnienia sygnału (repeatera)
- nie
- Głębokość
- 45 mm
- Liczba portów LAN 10/100 Mbit/s
- 2
- Liczba portów LAN 10/100/1000 Mbit/s
- 0
- Liczba stanowisk
- 28
- Maksymalna prędkość przesyłu danych
- 300 Mb/s
- Montaż podtynkowy
- nie
- Montaż słupowy
- nie
- Montaż ścienny
- tak
- Pasmo częstotliwości
- 2,4 GHz i 5 GHz
- Power over Ethernet
- tak
- Stopień ochrony (IP)
- IP65
- Szerokość
- 140 mm
- Wysokość
- 149 mm
- Zabezpieczenia VPN
- nie
- Zapora sieciowa
- nie
- Zarządzanie
- tak
Opis produktu

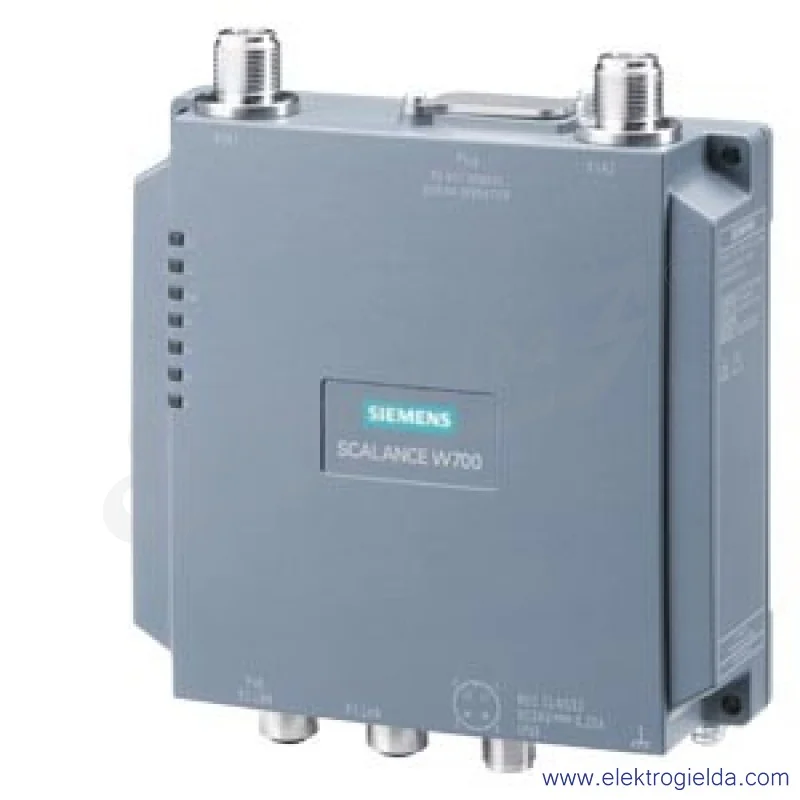

IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60°C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 Scope of delivery: Manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel . SCALANCE W738-1 M12 1x wireless, 2x N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE-integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, for operation outside the USA/Israel. For managing the radio connection of up to eight connected devices with Industrial Ethernet connection. 1 unit. The devices are suitable for installation in the control cabinet as well as for cabinet-free indoor installation. Predictabledata traffic (deterministic response) and defined response times on the radio link by iFeatures as well as reliable radio link through use of the MIMO technology and monitoring of the radio connection. PROFINET communication for real-time and redundancy requirements as well as option for transmission of safety-relevant data (safety) via PROFIsafe or CIP and other protocols. Particularly future-proof through conformity with WLAN standard IEEE 802.11 accepted worldwide as well as investment protection through flexible feature extensions with KEY-PLUG. Furthermore, cost savings through use of a single wireless network. Additional characteristics are easy management via Web server and SNMP, fast device replacement in an error case through optional removable data storage medium C-PLUG as well as the possibility to realize data-intensive applications, such as video streaming. Compact and space-saving in the control cabinet. The comprehensive accessories include an extensive antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system.
